型號

CA-1Y4-00SAWN-00

系列

透視 The Tower 系列

機型

Micro Tower

尺寸 (高*寬*深)

551 x 342 x 281 mm

(22.5 x 14 x 11.5 inch)

重量

8.3 kg / 18.3 lbs.

側窗

3mm Tempered Glass x 3

顏色

Pink

材質

SPCC

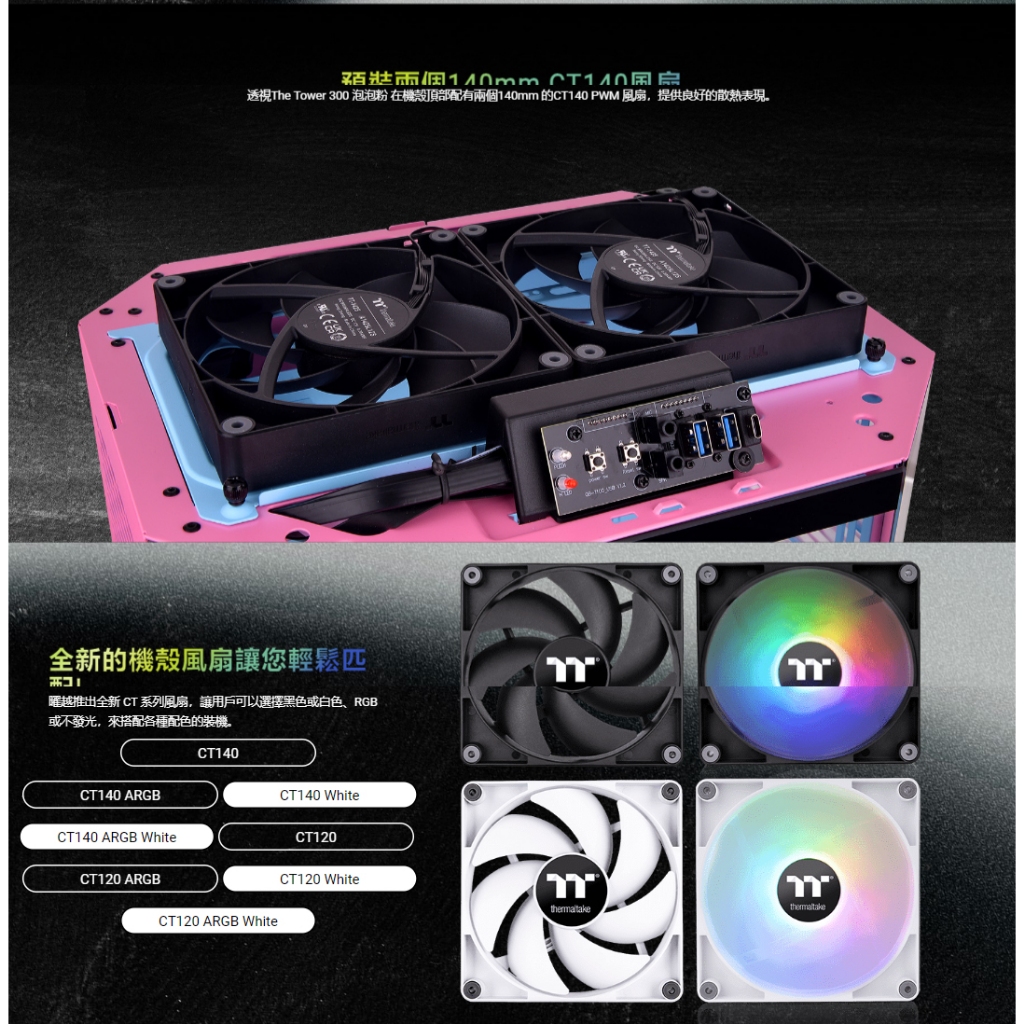

散熱系統

Top(exhaust):

140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2

儲存裝置

3 x 3.5” or 3 x 2.5”

PCI 插槽

4

適用主機板

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

I/O 連接埠

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

電源供應器

Standard PS2 PSU (optional)

風扇支援

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right Side:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

_x000B_Rear:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Power Cover:

1 x 120mm

1 x 140mm

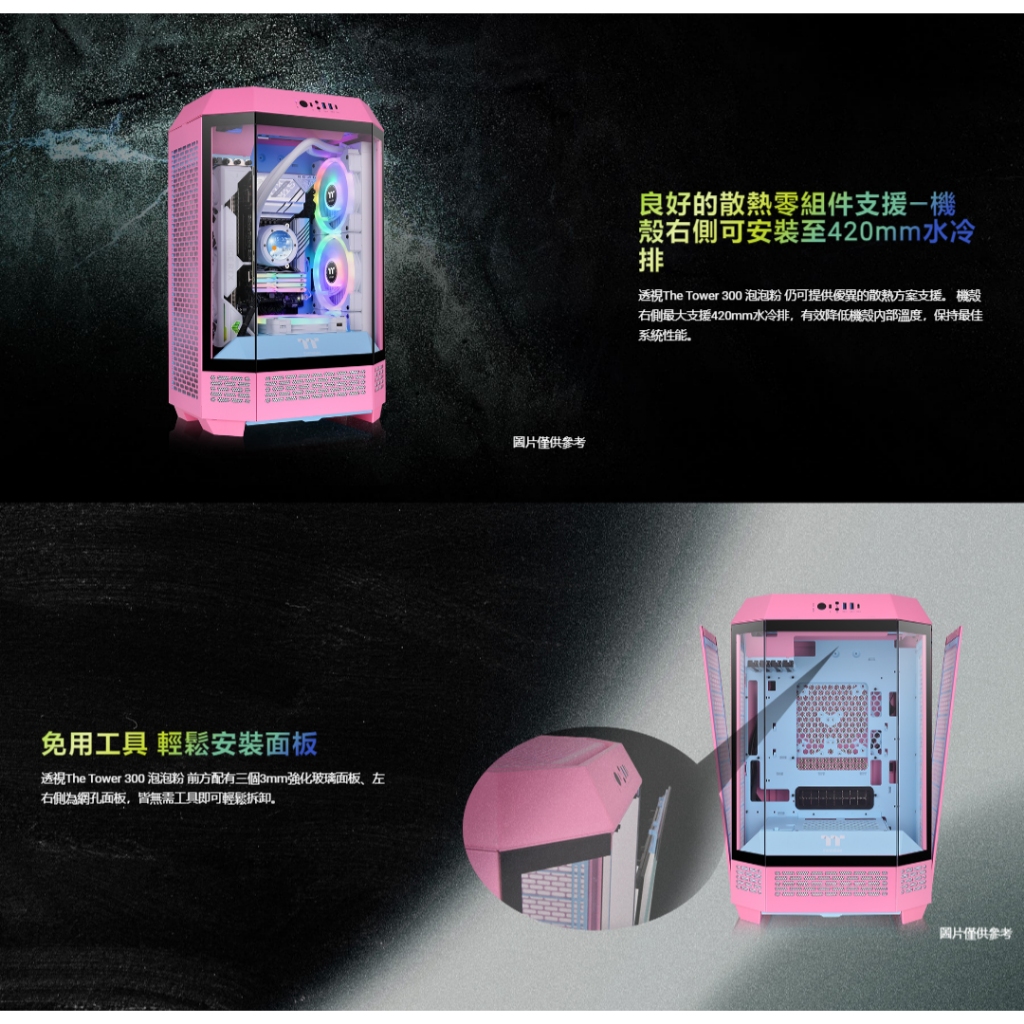

水冷排支援

Right Side(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

備註

CPU cooler height limitation:

210mm_x000B_VGA

length limitation:

280mm(With power cover)

400mm(Without power cover)

PSU length limitation:

220mm
